Makinë mbushëse automatike e dezorizatorit të lëngshëm për larjen e enëve

Makinë mbushëse automatike e dezorizatorit të lëngshëm për larjen e enëve

This machine is mainly used for perfume, disinfectant, repellent liquid, jelly water, rhinitis spirit, athlete's foot doctor, burn spray, watermelon frost sprays and other products of automatic filling and capping.

Makinë mbushëse automatike e dezorizatorit të lëngshëm për larjen e enëve

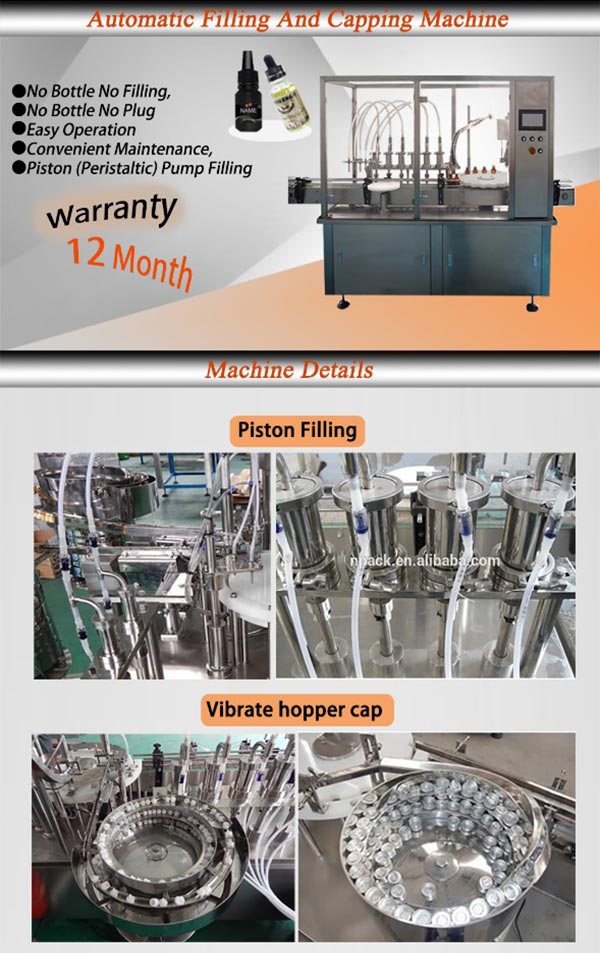

1. Workflow: bottle unscrambling --bottle washing (optional)?--filling --adding sprayer --adding cap (optional) --capping -- labeling --ribbon printing/ink jet printing (optional).

2. PLC controlsystem, color touch screen display.

3. This machine has function of no bottle no filling (only peristaltic pump) / no adding pump/ no adding outer cap (if has outer cap).

4. Stainless steel piston pump quantitative filling, pneumatic adding cap, lifting screw capping. Has advantages of accurate filling measurement, smooth screw capping, and simple operation.

5. Cappositioning device, makessure the sprayer plastic pipe which too long or curved could go to bottle neck accurately.

6. Filling nozzlesdive into bottlesto fill and riseslowly to prevent foaming. Catch type flexible screw lid/head, adjustable tightness.

7. Elementet kryesore elektrike adoptojnë marka të njohura të huaja.

8. Machine shellis made of 304 stainless steel, machine meets GMP requirements.

Makinë mbushëse automatike e dezorizatorit të lëngshëm për larjen e enëve

garanci1 YEAR
After-sales Service ProvidedOnline support
vërtetimCE Certificate
peshë500kg
Dimension(L*W*H)2100*1600*200
Brand NameNPACK
Place of OriginChina (Mainland)
China (Mainland)Shangai
tension220V / 50Hz
Driven Typeelektrik
Automatic Gradeautomatik
Packaging MaterialMetal, Paper, Plastic, Wood,Glass
Packaging TypeBarrel, Bottles, Cans, Case, Cartons
AplikacionApparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles
kushtI ri
After-sales Service ProvidedInxhinierë të disponueshëm për makineri shërbimi jashtë shtetit
Emri i produktitperfume filling machine
kapacitet10-35bottles/min
Mbushja e vëllimit20-200ML
Filling accurancy≤ ± 1%
Plotësimi i numrit të kokës2
Pesha neto450kg
Adding plud/dropper head1
Shkalla e kalimit≥98%

Makinë mbushëse automatike e dezorizatorit të lëngshëm për larjen e enëve

The machine works by one principle;

The piston is drawn back in its cylinder so that the product is sucked into the cylinder. A rotary valve then changes position so that the product is then pushed out of the nozzle instead of back into the hopper. The volume of the product that is sucked into the cylinder is the precise volume that will be dispensed into the container. All these procedure is highly controlled by servo motor to assure 100% working stability.

Determinedfarë përcaktoi aftësinë e makinës për mbushjen e pistonit?

In general, number of filling nozzles is the key to determine the capacity of your filling machine, which has directly influence on filling capacity by hour in actual production. Beside filling nozzles, the size of mouth of filling head is also a key to affect filling speed. And other details like bottle size, product viscosity, neck mouth, conveyor speed, etc. NPACK'S engineer will make all the details best before shipping to client's site.

Ekrani me prekje

Our touch screen is in two languages by default, Chinese and English, but we can also set it if the customer requires other languages

Our machines can be made into a complete production line

From bottle feeder +filling + capping + labeling + bottle collecting

We also have heating and stirring tank, air compressor, and other related products.

Bottle feeder .

This machine is mainly used for round or square shape bottles automatic sorting and arrangement. Put the bottles on the rotating disc manually, then it will set the bottles into the conveyor in order Machine shell and part contacting product are made of stainless steel, meets GMP standard.

Aplikacion:

The machine is mainly applied to 50 ml or less electronic cigarette oil, eye drops, nail polish, eye shadow, essential oils and other products of automatic filling, plug and screw cap.

Spray filling production line

This machine is mainly used for automatic filling of perfume, disinfectant, toilet water, gel water and other spray products

Liquid filling production line

This machine is mainly used for automatic filling of perfume, disinfectant, toilet water, gel water and other spray products

Cartoning machine

It's suitable for e-cigarette oil bottle, eye drops bottle, blister forming capsule and tablet, We can customize the machines exactly according to your bottles and your requirements!

FAQ

Q: Are you a factory or trading company?

A: NPACK is a factory who has 12 years experiences in food, drinks , medical and cosmetic industrials, we offer OEM services in the last over 12 years, and now we have our own brands and own designed machines for sale!

Q: How long you need to ship the machines after order?

A: All machines can be ready and shipped in 15 or 30 days after order!

Q: What's the payment you prefer?

A: We accept TT/Western union/Cash/LC

Q: Why should I choose your packing and filling machine ?

A: We have been specialized in filling and packing machine for more then ten years,and until now have exported machines to more than 100 countries
